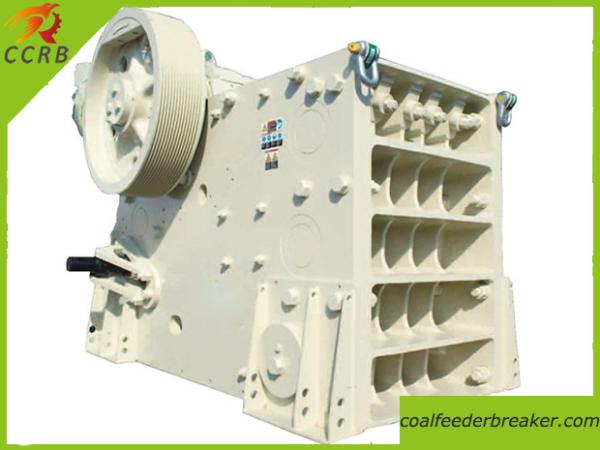

PEW Series Jaw Stone Crushing Equipment
Introduction:
PEW Series Jaw Stone Crushing Equipment is widely used for kinds of
ore and bulk material crushing. The material highest compressive
strength is 320Mpa. Our company jaw crusher is in first level in
domestic, with high crushing ratio, uniform product particle size,
simple structure, reliable working performance, easy maintenance
and low operation cost etc. The PEW series jaw crusher can be
widely used in mine, metallurgy, building material, highway and
chemical industry etc. Please see the following structural drawing:
Advantage:
- V-type deep cavity design with high crushing ratio and efficiency,
satisfying the request of raw material less than 1000mm and
finished product less than 300mm
- With the function of overload and iron-removal protection,
effectively protecting jaw head, reducing the equipment damage
- Adopt latest heavy-duty jaw head design, bearing greater material
impacting
- Jaw head discharge gate hydraulic adjustment function can lower the
labor intensity effectively and improve labor efficiency
- Humanization safety protection design, furthest protecting staff
and equipment damage and improving the capacity of 20% than
traditional jaw crusher
- Unique flywheel design, effectively reducing the equipment
vibration and making the equipment running more stable
PEW Series Jaw Crusher Technical Parameters:| Model | Feeding Open Size (mm) | Max.Feeding Size (mm) | Adjustable Size of Discharge Opening(mm) | Capacity (t/h) | Motor Power (KW) | Weight (t) | Dimension (mm) |
| PEW180Х1300 | 180Х1300 | 160 | 10-30 | 12-35 | 30 | 6 | 1320Х2150Х1175 |
| PEW250Х1000 | 250Х1000 | 220 | 20-40 | 18-58 | 30 | 5.6 | 1400Х1850Х1310 |
| PEW250Х1200 | 250Х1200 | 220 | 20-40 | 22-72 | 37 | 6 | 1450Х2150Х1175 |
| PEW250Х400 | 250Х400 | 220 | 20-60 | 5.5-22 | 15 | 2.8 | 1164Х1076Х1195 |
| PEW400Х600 | 400Х600 | 360 | 35-85 | 18-72 | 37 | 6.5 | 1920Х1460Х1840 |
| JC760Х1100 | 760Х1100 | 685 | 75-200 | 150-350 | 110-132 | 24 | 2600Х2500Х2200 |
| JC840Х1100 | 840Х1045 | 760 | 100-225 | 200-500 | 132-160 | 32 | 3300Х2320Х3120 |
| JC1100Х1200 | 1100Х1200 | 990 | 150-275 | 300-650 | 185-200 | 59 | 4140Х2660Х3560 |
