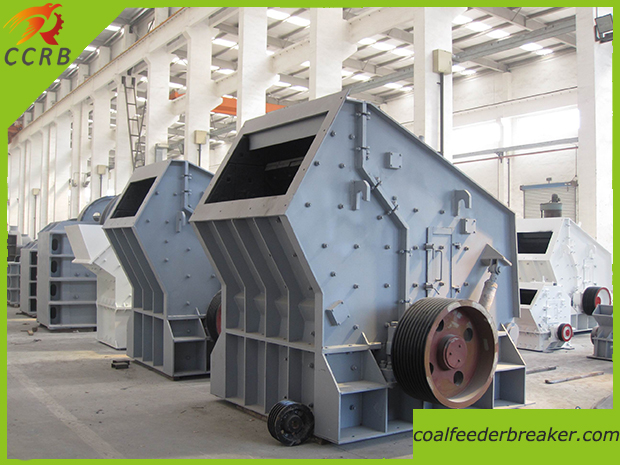

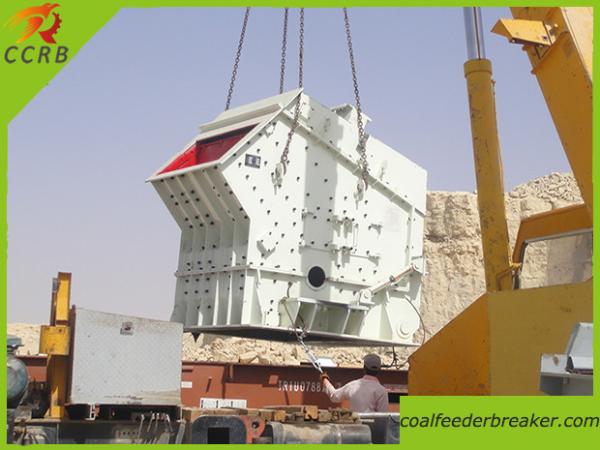

PF Series Impact Rock Crushing Machine
Introduction:
PF Series Impact Rock Crushing Machine includes two-chamber and
three-chamber series. It can crush the kinds of coarse, medium and
fine material(such as granite, limestone and concrete) side lenth
not more than 500mm, material compressive strength not more than
250Mpa. The PF series impact crusher can be widely used in mine,
metallurgy, building material, highway and chemical industry etc.
Please see the following structural drawing:
Advantage:
- With the function of overload and iron-removal protection,
effectively protecting the equipment
- With the product particle size adjusting function
- With hydraulic and pull-rod ways of starting seal cover,
effectively reducing the labor intensity
- Adopt the unique wedge block plate hammer retaining mechanism, easy
to adjust plate hammer
- Both sides of plate hammer can be available, effectively reducing
production cost
- Three-chamber design satisfies different customer requirements
- Keyless joint makes the machine running more stable
PF Series Impact Crusher:| Model | Specification | Feeding Open Size (mm) | Max.Feeding Size (mm) | Capacity (t/h) | Motor Model | Motor Power (KW) | Dimension (mm) | Weight (t) |
| PF-1007 | Ф1000Х700 | 400Х730 | 300 | 35-50 | Y250M-6 | 37 | 1800Х1600Х1800 | 9.5 |
| PF-1010 | Ф1000Х1050 | 400Х1080 | 350 | 50-80 | Y315S-6 | 75 | 2340Х2007Х2500 | 14 |
| PF-1210 | Ф1250Х1050 | 400Х1080 | 350 | 70-120 | Y315L1-6 | 110 | 2582Х2053Х2809 | 17 |
| PF-1212 | Ф1250Х1200 | 400Х1250 | 350 | 70-140 | Y315L2-6 | 132 | 2582Х2403Х2809 | 17.5 |
| PF-1214 | Ф1250Х1400 | 400Х1430 | 350 | 80-160 | Y315L2-6 | 132 | 2582Х2403Х2809 | 22 |
| PF-1315 | Ф1300Х1500 | 680Х1520 | 350 | 90-220 | Y2-335M2-6 | 200 | 2930Х2761Х3053 | 26 |
| PF-1320 | Ф1300Х2000 | 680Х1570 | 350 | 110-350 | Y2-335M2-6 | 280 | 3340Х2950Х3000 | 28 |
Related Products:
Mobile Cone Crusher&Jaw Crusher
Cone Crusher&Sand Making Machine
Impeller Sand Washer&Spiral Sand Washer
Apron Feeder Breaker&Scraper Feeder Breaker
Coal Crushing Plant&Banana Screen

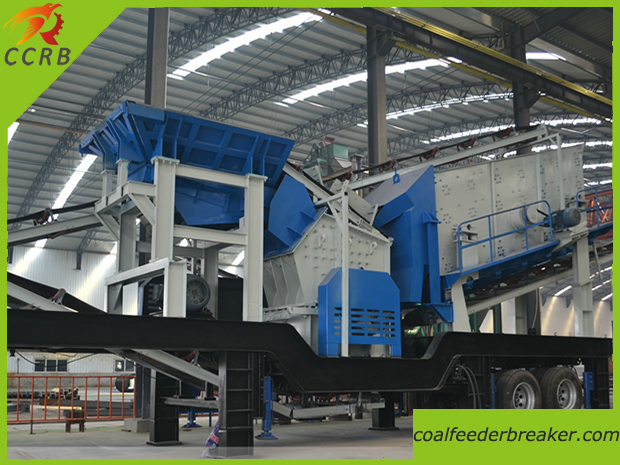

Crawler Type Mobile Crushing Plant&Trailer Type Mobile Crushing
