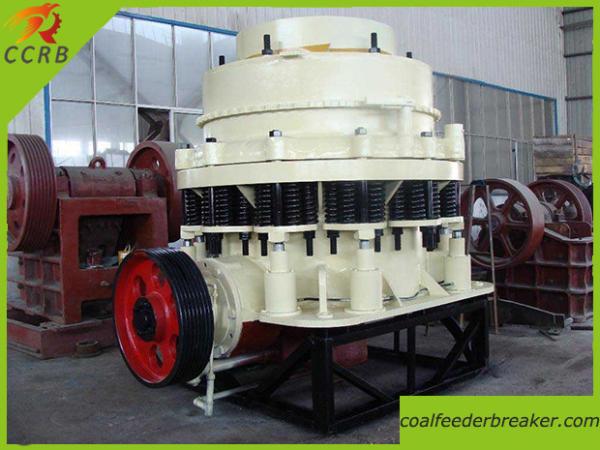

PY Series Spring Cone Crusher
Introduction:
PY Series Spring Cone Crusher is widely used in metallurgy,
construction, road building, chemical and silicate industry etc.
This series of spring cone crusher is suitable for crushing medium
hardness ores, with reliable construction, high production
efficiency, easy adjustment and low operation cost etc. Please see
the following structural drawing:
Advantage:
- Large capacity with good performance
- The final product with good particle shape and uniformity
- Good iron passing protection system
- Easy to clean the crusher cavity, reducing the stop time
- Stable performance with independent thin oil lubrication system
PY Series Spring Cone Crusher:| Model | Bottom Dia. Of Concial Crushing Head(mm) | Max.Feeding Size (mm) | Adjustable Size of Discharge Opening(mm) | Capacity (t/h) | Motor Power (KW) | Rev.of Eccentric Shaft(RPM) | Dimension (mm) | Weight (t) |
| PYB600 | Ф600 | 75 | 12-15 | 20-40 | 30 | 356 | 2234Х1370Х1675 | 5 |
| PYD600 | Ф600 | 35 | 3-13 | 12-23 | 30 | 356 | 2234Х1370Х1675 | 5.5 |
| PYB900 | Ф900 | 115 | 15-50 | 50-90 | 55 | 333 | 2692Х1640Х2350 | 11.2 |
| PYZ900 | Ф900 | 60 | 5-20 | 20-65 | 55 | 333 | 2692Х1640Х2350 | 11.2 |
| PYD900 | Ф900 | 50 | 3-13 | 15-50 | 55 | 333 | 2692Х1640Х2350 | 11.3 |
| PYB1200 | Ф1200 | 145 | 20-50 | 110-168 | 110 | 300 | 2790Х1878Х2844 | 24.7 |
| PYZ1200 | Ф1200 | 100 | 8-25 | 42-135 | 110 | 300 | 2790Х1878Х2844 | 25 |
| PYD1200 | Ф1200 | 50 | 3-15 | 18-105 | 110 | 300 | 2790Х1878Х2844 | 25.3 |
| PYB1750 | Ф1750 | 215 | 25-50 | 280-480 | 160 | 245 | 3910Х2894Х3809 | 50.3 |
| PYZ1750 | Ф1750 | 185 | 10-30 | 115-320 | 160 | 245 | 3910Х2894Х3809 | 50.3 |
| PYD1750 | Ф1750 | 85 | 5-13 | 75-230 | 160 | 245 | 3910Х2894Х3809 | 50.2 |
| PYB2200 | Ф2200 | 300 | 30-60 | 590-1000 | 260-280 | 220 | 4622Х3302Х4470 | 80 |
| PYZ2200 | Ф2200 | 230 | 10-30 | 200-580 | 260-280 | 220 | 4622Х3302Х4470 | 80 |
| PYD2200 | Ф2200 | 100 | 5-15 | 120-340 | 260-280 | 220 | 4622Х3302Х4470 | 81.4 |
