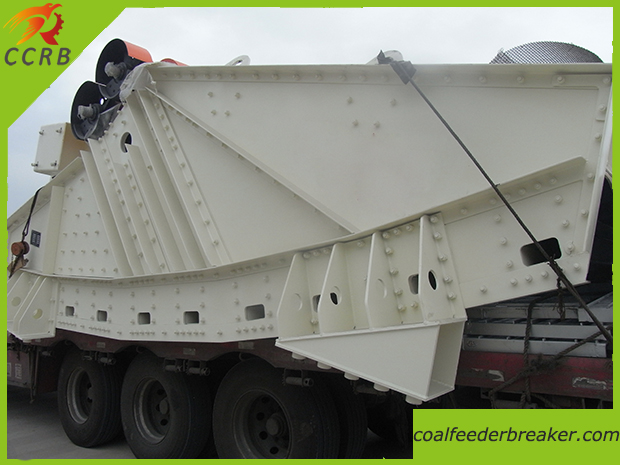

Coal Dewatering Vibrating Screen
Introduction:
Coal Dewatering Vibrating Screen for process plant facilities are supplied in a diverse range of
innovative modular designs suitable for coal, ore, rock
applications.
Coal Dewatering Vibrating Screen is used for medium, small size
classification and material screening. It has varieties of
application range:
- Iron ore& gold powder
- Coal powder
- Aggregates
- Sand &gravel
- Hard rock, limestone and ore,etc
Advantage:
- Quick change of the drive unit
- Replacement service for the CCRB double unbalance drive units
- Constant infinitely variable stroke
- Low overall height owing to the horizontal arrangement of
assemblies
- Much larger feed quantity with the same screen area than
conventional sieving machine
- Multiple screen surfaces, much easier to sieve
- Strong and durable structure, easy to maintain
- ISO9001:2008 and SGS Audited
Banana Screen Technical Parameters:| Model | Screen Surface | Feeding Size(mm) | Capacity(m3/h) | Motor |
| Deck | Area(m2) | Mesh Size(mm) | Power(kw) | Qty |
| ZXD1261 | 1 | 7.32 | 0.25-13 | <100 | 5.0-244 | 11 | 1 |
| 2ZXD1261 | 2 | 2*7.32 | Upper3-50 Lower0.25-13 | <100 | 45-550 | 15 | 1 |
| ZXD1861 | 1 | 10.98 | 0.25-13 | <100 | 6.2-305 | 18 | 1 |
| 2ZXD1861 | 2 | 2*10.98 | Upper3-50 Lower0.25-13 | <100 | 56-680 | 22 | 1 |
| ZXD2461 | 1 | 14.64 | 0.25-13 | <100 | 5.0-244 | 22 | 1 |
| 2ZXD2461 | 2 | 2*14.64 | Upper3-50 Lower0.25-13 | <100 | 45-550 | 30 | 1 |
| ZXD3061 | 1 | 18.3 | 0.25-13 | <100 | 6.2-305 | 30 | 1 |
| ZXD3073 | 1 | 21.9 | 0.25-13 | <100 | 6.2-305 | 30 | 1 |
| ZXD3661 | 1 | 21.96 | 0.25-13 | <100 | 7.4-366 | 45 | 1 |
| ZXD3673 | 1 | 26.28 | 0.25-13 | <100 | 8.5-366 | 45 | 1 |
| ZXD4361 | 1 | 26.23 | 0.25-13 | <100 | 8.5-366 | 55 | 1 |
| ZXD4373 | 1 | 31.39 | 0.25-13 | <100 | 11-420 | 55 | 1 |
Related Products:
Circular Vibrating Screen&Linear Vibrating Screen

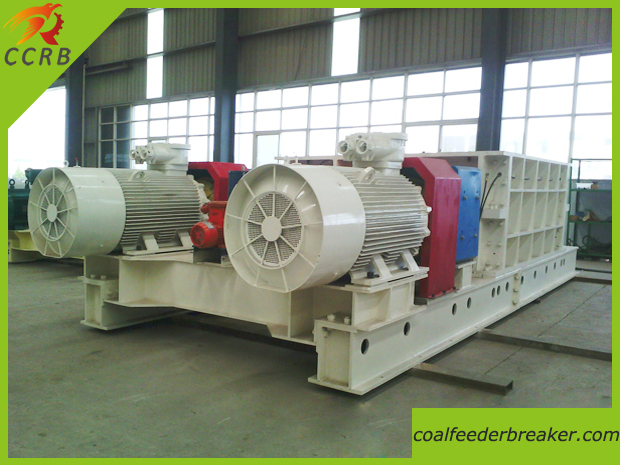

Coal Sizer&Coal Crushing Plant

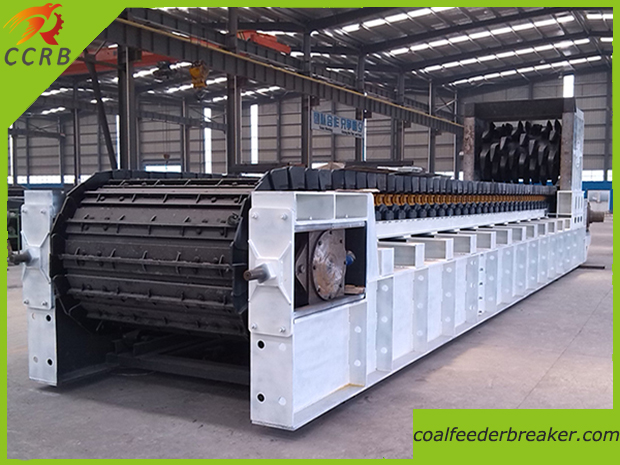

Apron Feeder Breaker&Scraper Feeder Breaker
Crawler Type Mobile Crushing Plant&Trailer Type Mobile Crushing
Plant
Vibrating Feeder&Belt Feeder
Portable Jaw Crusher&Impact Crusher

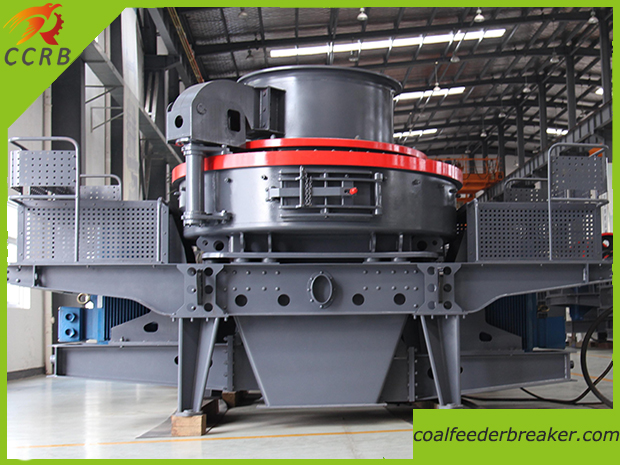

Cone Crusher&Sand Making Machine
Impeller Sand Washer&Spiral Sand Washer
After-sales Service:
Provide professional staff training for customers
1. Service engineer offers spot training and equipment operation
manual.
2. After-sales personnel visit customers on a regular basis.
3. Design engineer provides professional service for customers for
free.
