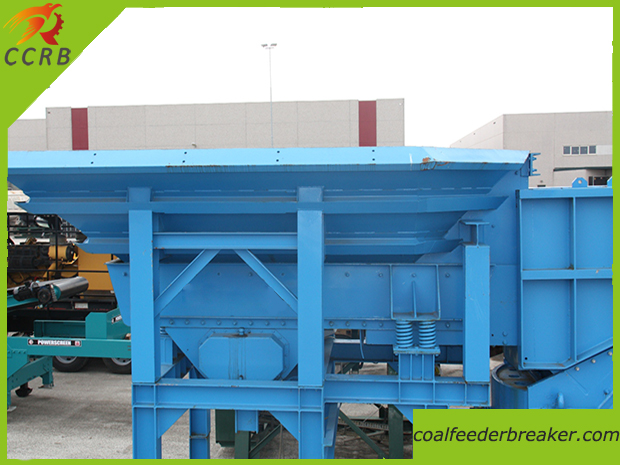

Mining Vibrating Grizzly Feeder
Introduction:
Our company mining vibrating grizzly feeder includes GZD and ZSW
series.
GZD series vibrating grizzly feeder adopts vibration motor as the
vibration source. ZSW series vibrating grizzly feeder adopts
eccentric shaft vibration exciter as the vibration source and uses
gear drive. They all have simple structure, large capacity, low
failure rate and are widely used in the metallurgy, wear-resistant
material, sandstone crushing industry etc.
Advantage:
- Simple structure without rotating parts, with less wearing parts,
low power consumption
- With special grid section design, effectively prevent the material
from blocking and make the primary screening for material, improve
the capacity
- With small volume, light weight, simple and compact structure,
small investment and high cost performance
Mining Vibrating Grizzly Feeder:| Model | Max.Feeding Size (mm) | Motor Power (KW) | Motor Number of Poles | Capacity (t/h) | Installation Angle(°) | Trough Size (mm) | Dimension (mm) | Weight (t) |
| GZD-180Х80 | 300 | 2Х1.5 | 4 | 30-80 | 0-10 | 1800Х800 | 1907Х964Х890 | 0.8 |
| GZD-300Х90 | 400 | 2Х2.2 | 4 | 40-100 | 0-10 | 3000Х900 | 3400Х1020Х900 | 1.5 |
| ZSW-300Х90 | 450 | 7.5 | 6 | 50-150 | 0-10 | 3000Х900 | 3080Х1650Х1180 | 3.5 |
| ZSW-380Х96 | 500 | 11 | 6 | 120-210 | 0-10 | 3800Х960 | 3880Х1724Х1180 | 4.2 |
| ZSW-420Х110 | 650 | 15 | 6 | 180-400 | 0-10 | 4200Х1100 | 4200Х1804Х1180 | 4.8 |
| ZSW-490Х110 | 650 | 15 | 6 | 250-480 | 0-10 | 4900Х1100 | 4976Х1864Х1180 | 5.3 |
| ZSW-490Х130 | 800 | 22 | 6 | 300-550 | 0-10 | 4900Х1300 | 4976Х2064Х1180 | 6.7 |
| ZSW-600Х130 | 800 | 30 | 6 | 340-600 | 0-10 | 6000Х1300 | 6100Х2004Х1250 | 7.8 |
| ZSW-600Х160 | 1050 | 37 | 4 | 400-800 | 0-10 | 6000Х1600 | 6400Х3085Х2395 | 10.8 |
