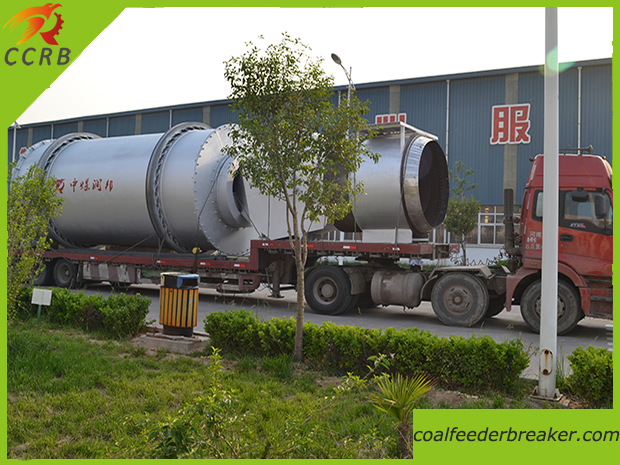

30TPH Three-cylinder Sand Rotary Dryer

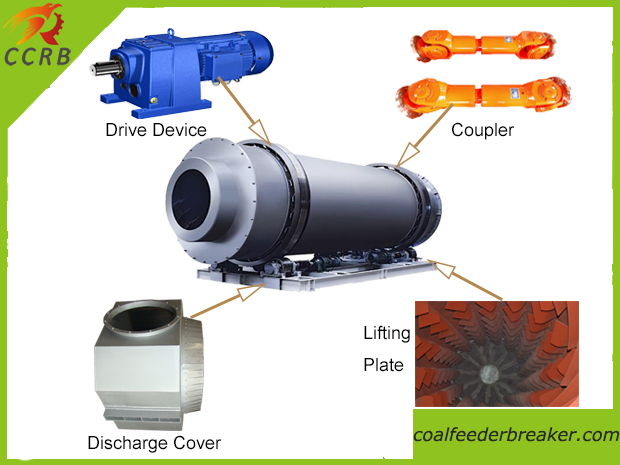

Structure Drawing:
Working Principle:
The Three-cylinder Sand Rotary Dryer adopts the Germany's advanced
technology, full consideration and using the principle of the role
of the dryer and greatly improve the efficiency, make the material
sufficient heat exchange , three cylinder in turn from the inside
to out, from hot to cold stratify, decorate, and surrounded by,
with each other, make the cylinder cooling area is greatly reduced,
and the heat exchange area is multiplied, reduces the exhaust
temperature, and loading of each cylinder body has a certain angle,
more in line with the material movement and heat exchange of the
feed plate to further improve the efficiency of the drying
material.

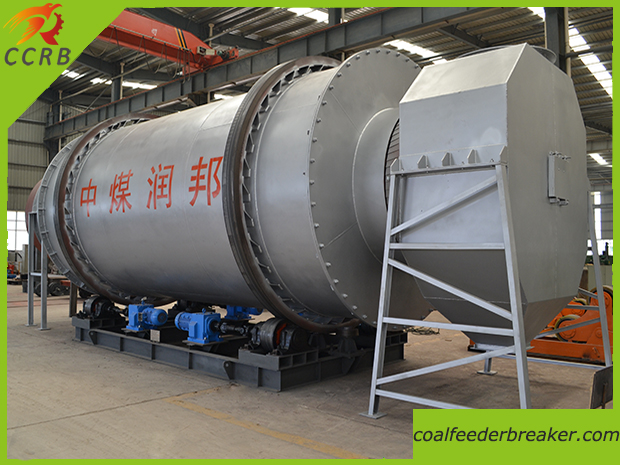

Advantage:
- High thermal efficiency, the three cylinder rotary dryer forms a
system of thermal insulation, heat utilization rate over 80%, outer
drum temperature 60°C, exhaust gas temperature under 100°C.
- Smaller floor space, equal half area of single drum dryer.
- 16MnR Steel Material, more wear-resisting, long service life.
- The driving device adopts Flender electrical motor and reducer.
- The rotary dryer riding wheel uses 45# steel quenched and tempered
treatment, surface high frequency quenching, greatly improving the
wear resistance.
- Stainless steel scales in sealing device in feeding and discharging
port.
- Rotary dryer outside is sprayed paint with 400°C high temperature
resistant.
- Raising plate blade is made of wear-resistant steel plate, blade
density is high, so as to improve the yield and reduce energy
consumption.
Three-cylinder Sand Dryer Technical Parameters:Model | Capacity (t/h) | Dry Mix Mortar Annual Output (Ten Thousand Tons) | Power (kw) |
ZMST-2240 | 15-25 | 5 | 2*7.5 |
ZMST-2560 | 30-35 | 10 | 2*11 |
ZMST-3265 | 45-50 | 20 | 4*7.5 |
ZMST-3270 | 50-60 | 30 | 4*7.5 |
ZMST-3275 | 70-80 | 40 | 4*11 |
ZMST-3475 | 80-90 | 50 | 4*15 |
Drying System:
The dry mix mortar drying system includes wet sand silo, fuel bin,
furnace in fluid bed,
bucket elevator, dust collector and three cylinder rotary dryer.
Pls see the following pictures:
Application Range:
Mainly used to dry river sand, yellow sand, coal powder, cement
clinker and clay in
Cement Industry, Metallurgy Industry, Chemical Industry and
Building Material Industry.
