30TPH Sand Probability Screen
Introduction:
Sand Probability Screen is mainly used to screen sand, ore and fine
particle materials, especially used in dry mortar mixing plant. Its
working principle is very similar with linear vibrating screen, but
there is better design compare to linear vibrating screen. Please
see the following probability screen drawing:
Advantage:
- Reasonable screen surface inclined angle, using the smallest screen
area to get the highest working efficiency.
- Screen body with good sealing, avoid dust overflow and protect
factory environment.
- With unique design, easy to change the screen top cover and screen
mesh.
- Each layer of screen meshes all adopt large angle arc structure,
with higher capacity and less wear of screen mesh.
- The feed inlet with shunt device increases the use ratio of screen
area, improving screening capacity.
- The screen with wear-resisting screen mesh, increasing screen
service life.
Sand Probability Screen Technical Parameters:Model | Screen | Max.Feeding Size (mm) | Processing Capacity (t/h) | Motor Power (kw) |
Screen Area(m2 ) | Screen Mesh(mm) | Inclined Angle(°) |
ZMGLS-1020 | 2 | 0.2-30 | 20-30 | 50 | 3-10 | 2.2 |
ZMGLS-1220 | 2.4 | 5-15 | 3 |
ZMGLS-1225 | 3 | 5-20 | 3 |
ZMGLS-1520 | 3 | 10-30 | 4.4 |
ZMGLS-1525 | 3.75 | 10-40 | 6 |

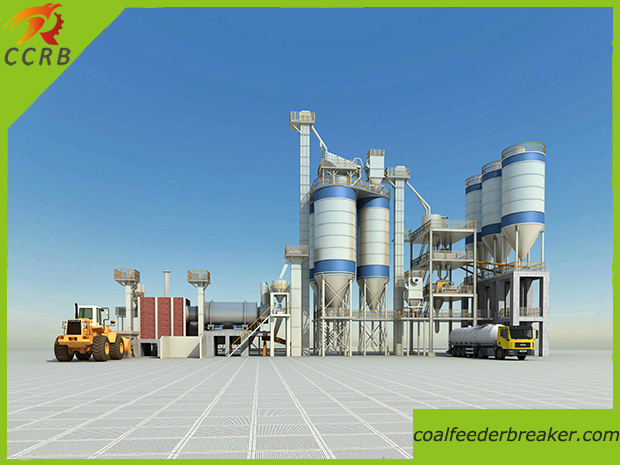

Sand Probability Screen For Dry Mortar Plant:
Related Products:
Coal Crushing&Screening Plant
Portable Jaw Crusher Plant
Dry Mortar Mixing Plant&Three-cylinder Rotary Dryer
Ploughshare Mixer&Agravic Mixer
Dryer Dust Collector&Screw Conveyor
Bucket Elevator&Packing Machine
Training System:
Provide professional staff training for customers
- Service engineer offers spot training and production line operation
manual.
- After-sales personnel visit customers on a regular basis.
- Design engineer provides professional service for customers for
free.
