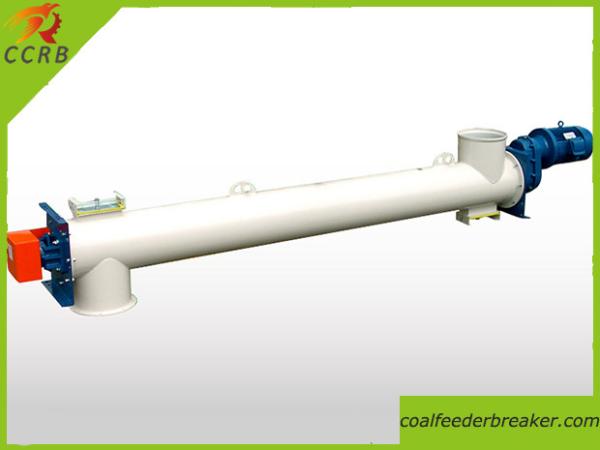

    Tubular Sand Screw Conveyor

    Tubular Sand Screw Conveyor

    Introduction:

    ZMLS Series Tubular Sand Screw Conveyor for process plant facilities are supplied in a diverse range of innovative modular designs suitable for Chemical, Building Material, Metallurgy, Food and Grain.

    In addition, the Tubular Sand Screw Auger Conveyor is also used for powder or bulk material handling. It has varieties of application range:

    • Iron ore & gold powder
    • Coal Powder
    • Aggregates
    • Sand & gravel

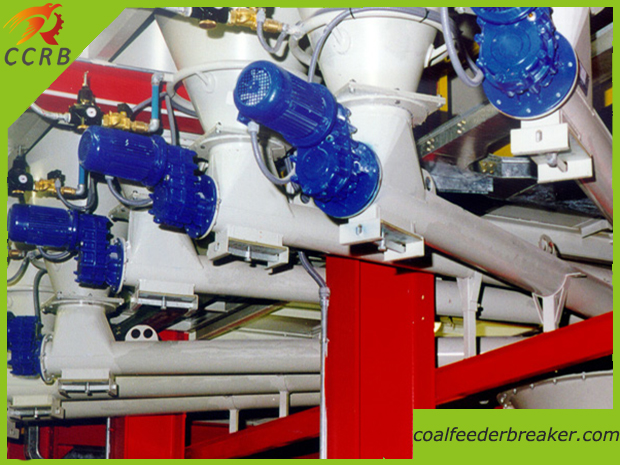

    Cement Screw Conveyor

    Screw Conveyor Drawing

    Standard“ZMLSeries" Features:

    • Conveying material: powder material and big viscidity material
    • Tilt angle: 0-45 degree
    • Temperature of materials transportation:≤200 celsius degree

    Powder Screw ConveyorScrew Auger Conveyor

    Screw Conveyor Technical Parameters:

    Standard spiral diameter(mm)

    ZMLS

    150

    ZMLS

    200

    ZMLS

    250

    ZMLS

    300

    ZMLS

    400

    ZMLS

    500

    ZMLS

    600

    Screw pitch(mm)

    150

    200

    250

    300

    400

    500

    600

    Screw shaft standard RPM

    20, 30 ,35, 45, 60, 75, 90, 120, 150, 190

    Maximum
    Throughput



    Coal

    Screw axis maximum
    RPM

    190

    150

    150

    120

    120

    90

    90

    Maximum throughput
    (t/h)

    4.5

    8.5

    16.5

    13.5

    54

    79

    139

    Clay

    Screw axis maximum
    RPM

    90

    75

    75

    60

    60

    45

    45

    Maximum throughput
    (t/h)

    4.8

    9.5

    18.6

    25.8

    60.8

    39.3

    153

    Sand

    Screw axis maximum
    RPM

    75

    60

    60

    60

    45

    45

    35

    Maximum throughput
    (t/h)

    4.6

    8.7

    17

    29.5

    52

    102

    137

    Screw Feeder

    Related Products:

    Coal Crushing&Screening Plant

    Coal Crushing Plant

    Portable Jaw Crusher Plant

    Portable Jaw Crusher

    Dry Mortar Mixing Plant&Three-cylinder Rotary Dryer

    Dry Mortar Mixing PlantThree-cylinder Rotary Dryer

    Ploughshare Mixer&Agravic Mixer

    Ploughshare MixerAgravic Mixer

    Dryer Dust Collector&Bucket Elevator

    Dryer Dust CollectorBucket Elevator

    Probability Screen&Packing Machine

    Probability ScreenPacking Machine

    Training System:

    Provide professional staff training for customers

    • Service engineer offers spot training and production line operation manual.
    • After-sales personnel visit customers on a regular basis.
    • Design engineer provides professional service for customers for free.
