GP Series Single-cylinder Hydraulic Cone Crusher

Introduction:

The single cylinder hydraulic cone crusher is a high efficiency cone crusher designed by introducing American technology and combining the metal nature on the world market. It is widely used in metal mine, metallurgical, chemistry, construction, cement, sand and stone production industry. It applies to the primary and secondary crushing of various of mines and rocks, the Protodyakonov hardness of which is f=5-16, such as iron ore, nonferrous ore, granite, limestone, quartzite ore, sandstone, pebble and so on.

Working Principle:

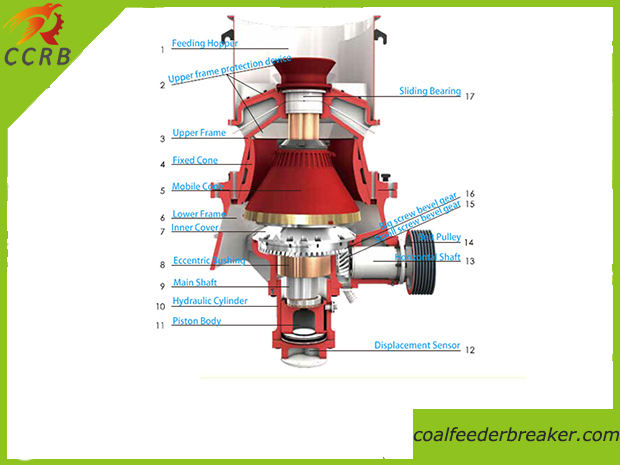

The single cylinder hydraulic cone crusher is mainly composed of upper bracket, middle bracket, bottom bracket, movable cone, eccentric sleeve, transmission and hydraulic cylinder. The whole working process of this machine is that motor drives rotation of horizontal axis, horizontal axis drives the rotation of eccentric sleeve through the spiral bevel gear, and then eccentric sleeve would drive the rotary oscillation of movable cone so as to realize the continuous extrusion.
The adjustment of hydraulic cylinder at the bottom of movable cone can drive main shaft thus driving movable cone move up and down to easily adjust the space of movable cone and the lining plate of fixed cone, then the product size will be controlled. Hydraulic cylinder also has the function of overload protection. When materials that cannot be crushed (such as iron) enter into crushing chamber, the accumulator will be triggered, then the hydraulic cylinder will drop movable cone to release the iron and recover normal crushing automatically, which can protect the crusher perfectly.

Advantage:

1.High efficiency:

The hydraulic cone crusher has support on both ends of the spindle, which is able to bear greater crushing force and greater stroke, coupled with the special shape of crushing chamber adapted to laminated principle, the machine has higher crushing efficiency.

2.Large production capacity:

The hydraulic cone crusher has the perfect combination of design with crush stroke, crushing speed and crushing chamber shape, which make the machine’s moving cone big end diameter in the same circumstances, the output is 35% ~ 60% higher than the old spring cone crusher.

3.High quality stones:

The hydraulic cone crusher adopts special crushing chamber and laminated crushing principle, resulting in inter-particle crushing effect, so that the finished product significantly increased the proportion of the cube, flake stone needles reduced and grain is more uniform. Just replacing the fixed cone can achieve a variety of cavity shapes for fine crushing.Double insurance controlled hydraulic and lubrication system can ensure the machine’s overload protection and good bearing lubrication.

4.Easy maintenance:

The structure of cone crusher is simple and compact.It has the features of stable performance, not easy to fault and convenient maintenance.

GP Series Single-cylinder Hydraulic Cone Crusher:
