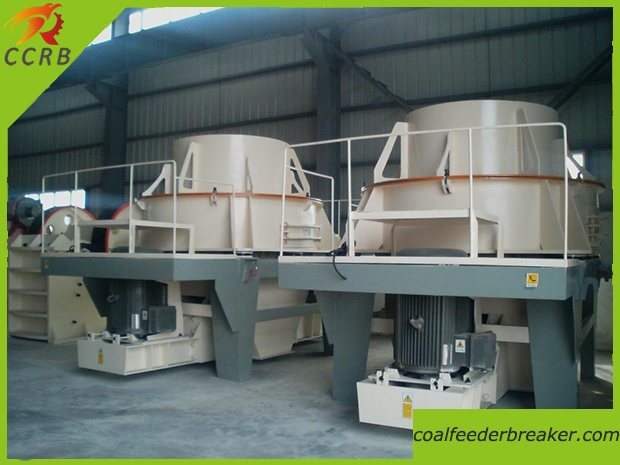

PCL Series Sand Making Equipment
Introduction:
PCL Series Sand Making Equipment integrates three kinds of crushing
modes and it is the core equipment in the construction, mine,
metallurgy, highway, railway, bridge, hydropower, mineral grinding
field and mechanism sand industry. PCL series sand making machine
is suitable for crushing different hardness of medium and fine
material, such as iron ore, non-ferrous metal ore, carborundum,
bauxite, quartz stone, brown aluminum oxide, perlite and basalt
etc. Please see the following structural drawing:
Advantage:
- With combined type hammer design, only need to replace wearing
hammer, reducing more than 30% use-cost. It also adds the deputy
hammer, effectively preventing vertical plate from damage after the
primary hammer is worn.
- The core wear-resisting material adopts highly wear-resistant and
high temperature resistant material which is applied in American
important industry.
- Adopt the rhombic impact block to avoid damaging vertical plate
after material impacting abrasion.
- Adopt the international famous bearing brand, such as Japan, Sweden
and America bearing brand etc.
PCL Series Sand Making Machine:| Model | Impeller Rotation Speed(RPM) | Max.Feeding Size(mm) | Motor Model | Capacity (t/h) | Motor Power (KW) | Dimension(mm) |
| PCL-600 | 2000-2600 | 26 | Y200L1-2 | 12-30 | 2Х30 | 2800Х1460Х2030 |
| PCL-600B | 2000-2600 | 26 | Y200L2-2 | 12-50 | 2Х37 | 2800Х1460Х2030 |
| PCL-750 | 1500-2500 | 35 | Y225M-4 | 26-65 | 2Х45 | 3300Х1800Х2440 |
| PCL-900 | 1300-1700 | 35 | Y250M-4 | 55-120 | 2Х75 | 3750Х2120Х2660 |
| PCL-900B | 1000-1450 | 40 | Y280M-4 | 60-150 | 2Х90 | 3750Х2120Х2660 |
| PCL-1050 | 1000-1700 | 40 | Y315S-4 | 100-160 | 2Х110 | 4480Х2450Х2906 |
| PCL-1250 | 950-1200 | 40 | Y315M-4 | 100-260 | 2Х132 | 4563Х2650Х3176 |
| PCL-1350 | 800-1200 | 60 | Y315L2-4 | 160-360 | 2Х200 | 5340Х2940Х3650 |
Related Products:

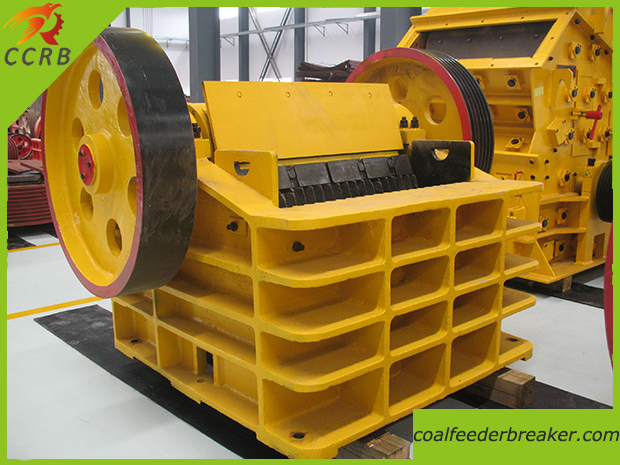

Construction Waste Mobile Crushing Plant&Jaw Crusher
Cone Crusher&Impact Crusher
Impeller Sand Washer&Spiral Sand Washer
Apron Feeder Breaker&Scraper Feeder Breaker
Coal Crushing Plant&Banana Screen

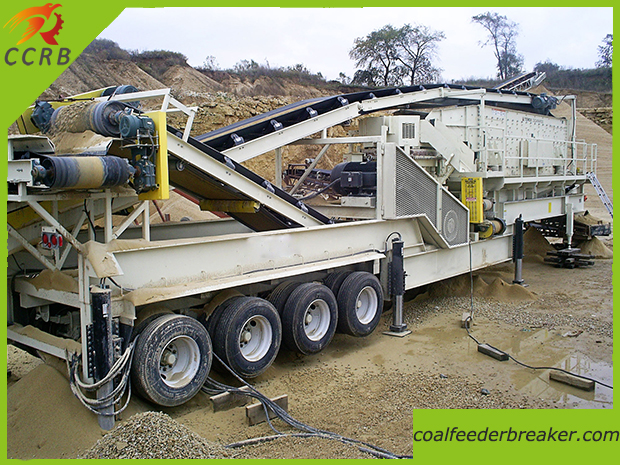

Crawler Type Mobile Crushing Plant&Trailer Type Mobile Crushing
Plant
Linear Vibrating Screen&Circular Vibrating Screen
Vibrating Feeder&Belt Feeder
Training System:
Provide professional staff training for customers
- Service engineer offers spot training and production line operation
manual.
- After-sales personnel visit customers on a regular basis.
- Design engineer provides professional service for customers for
free.
