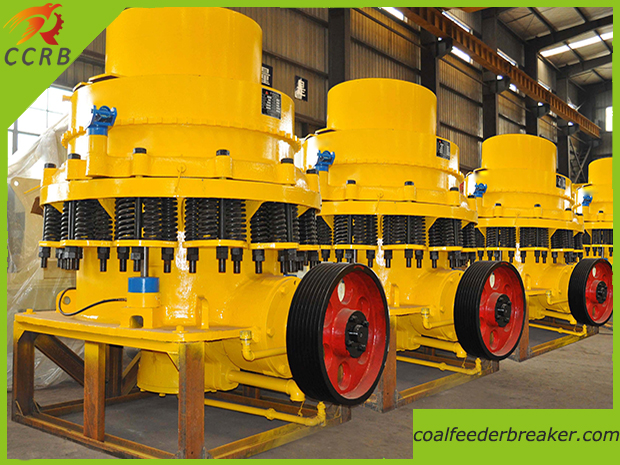

WKS Series Aggregate Compound Cone Crusher
Introduction:
WKS Series Aggregate Compound Cone Crusher is widely used in
metallurgy, construction, road building, chemical and silicate
industry etc. This series of spring cone crusher is suitable for
crushing medium hardness ores, with reliable construction, high
production efficiency, easy adjustment and low operation cost etc.
Please see the following structural drawing:
Advantage:
- Large capacity with good performance
- The final product with good particle shape and uniformity
- Good iron passing protection system
- Easy to clean the crusher cavity, reducing the stop time
- Stable performance with independent thin oil lubrication system
WKS Series Short Head Cone Crusher:| Model | WKS75-D | WKS160-D | WKS250-D |
| Diameter | 914mm | 1295mm | 1676mm |
| Cavity Type | Narrow | Medium | Wide | Narrow | Medium | Wide | Narrow | Medium | Wide |
| Smallest Size of Discharge Opening(mm) | 3 | 3 | 6 | 3 | 6 | 16 | 5 | 6 | 13 |
| Feeding Open Size(mm) | Closed Side Setting(CSS) | 13 | 33 | 51 | 19 | 54 | 98 | 35 | 54 | 117 |
| Open Side Setting(OSS) | 40 | 60 | 76 | 64 | 89 | 133 | 70 | 89 | 133 |
| Capacity(t/h) | 27-90 | 30-100 | 31-110 | 36-163 | 82-163 | 109-227 | 90-209 | 136-281 | 190-336 |
| Weight(t) | 15 | 26.5 | 43.5 |
| Motor Power(KW) | 75 | 160 | 250 |
| Dimension(mm) | 2865Х2000Х2190 | 3300Х2500Х2940 | 4105Х3280Х3505 |
WKS Series Standard Cone Crusher:| Model | WKS75-B | WKS160-B | WKS250-B |
| Diameter | 900mm | 1275mm | 1650mm |
| Cavity Type | Narrow | Medium | Wide | Narrow | Medium | Wide | Narrow | Medium | Wide |
| Smallest Size of Discharge Opening(mm) | 9 | 13 | 25 | 13 | 16 | 25 | 16 | 22 | 38 |
| Feeding Open Size(mm) | Closed Side Setting(CSS) | 83 | 159 | 163 | 109 | 188 | 238 | 188 | 213 | 331 |
| Open Side Setting(OSS) | 102 | 175 | 178 | 137 | 210 | 259 | 209 | 241 | 368 |
| Capacity(t/h) | 45-91 | 50-120 | 59-163 | 109-181 | 132-253 | 172-349 | 181-327 | 258-417 | 299-635 |
| Weight(t) | 15 | 26.5 | 43.5 |
| Motor Power(KW) | 75 | 160 | 250 |
| Dimension(mm) | 2865Х2000Х2190 | 3300Х2500Х2940 | 4105Х3280Х3505 |
