20-25TPH Full-automatic Dry Mortar Production Line
Introduction:
Full-automatic Dry Mortar Production Line mainly produces ordinary
premixed mortar and special mortar. The whole production line
includes Wet Sand Drying System, Screening System, Storage System,
Weighing System, Mixing System, Bulk&Packing System, Dedusting
System, etc.
Advantage:
- Advanced design concept, with high production efficiency.
- High configuration and low failure rate.
- With special fault self-diagnosis system.
- High intelligent and modular design, with easy and quick
installation.
- High efficiency dust collecting system, energy conservation and
environmental protection
Dry Mortar Production Line Main Equipment:
Ploughshare Mixer&Agravic Mixer

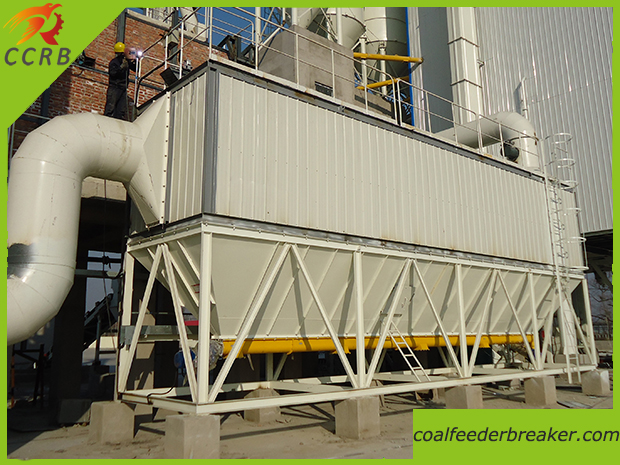

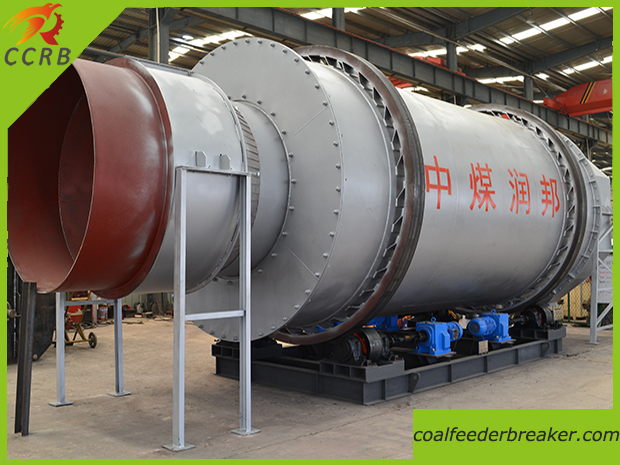

Three-cylinder Rotary Dryer&Dryer Dust Collector
Bucket Elevator&Screw Conveyor
Probability Screen&Packing Machine
Dry Mortar Production Line Technical Parameters:| Parameter Name | Production Line Model and Parameter |
| Name | Unit | ZMZS5000 | ZMZS4500 | ZMZS3000 | ZMZS2000 |
| Design Capacity | TPH | 80-85 | 55-60 | 35-40 | 20-25 |
| Annual Capacity (300d/y*16h/d) | TPY | 400,000 | 300,000 | 200,000 | 100,000 |
| Mixer Model | / | ZMDH5000 | ZMDH4500 | ZMDH3000 | ZMDH2000 |
| Mixer Volume | m³ | 5 | 4.5 | 3 | 2 |
| Load Factor | / | 70% | 70% | 70% | 70% |
| Mixer Power | KW | 90 | 75 | 55 | 45 |
| Dryer Model | / | ZMST3275 | ZMST3270 | ZMST3265 | ZMST2560 |
| Dryer Capacity | TPH | 80-85 | 55-60 | 35-40 | 20-25 |
| Dryer Power | KW | 4*11 | 4*7.5 | 4*7.5 | 2*11 |
| Powder Silo Volume (Cement,Fly Ash etc) | m³ | 3*120 | 3*80 | 3*80 | 3*50 |
| Sand Silo Volume | m³ | 3*140 | 3*140 | 3*140 | 3*80 |
| Additive Silo Volume | m³ | 2*1.5 | 2*1.5 | 2*1.5 | 2*1.5 |
| Sand Weighing Volume | m³ | 3 | 2 | 1.2 | 0.6 |
| Sand Weighing Accuracy | % | ≤±1.5 | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Powder Weighing Volume | m³ | 1.5 | 1 | 0.8 | 0.4 |
| Powder Weighing Accuracy | % | ≤±1 | ≤±1 | ≤±1 | ≤±1 |
Production Line Overall Dimension | m | 22*15*28 | 22*15*28 | 22*15*28 | 22*15*28 |
| Total Installed Power | KW | 420 | 380 | 350 | 320 |
Dry Mix Mortar Raw Materials:
- Binders: Cement, hydrated lime, anhydrite, gypsum.
- Filler: Silica sand, quartz sand, limestone, dolomite, expanded
perlite etc.
- Mineral admixture: Ground granulated blast furnace slag, fly ash,
pozzolana, fine silica powder etc.
- Water-retention and thickening material.
- Chemical additives: Cellulose esters, superplasticizer, air
entraining agents, accelerating agents, retarding agents, defoaming
agents, hydrophobic agents, and etc.
Application Range:
- Bonding mortar: Masonry mortar, wall and floor tile adhesive
mortar, anchorage mortar etc.
- Decoration mortar: Decorative plaster, inner and outer wall putty,
colorful decoration mortar etc.
- Protection mortar: Water-proof mortar, anti-corrosion mortar,
self-leveling mortar, wear resistance mortar, thermal insulation
mortar, sound insulation mortar, repair mortar, mildewproof mortar,
shielding mortar etc.
Installation and Delivery:
Strict site three-level quality inspection system
- Installation captain inspection: Evaluate the installation level of
dry mortar mixing plant.
- Spot QA engineer inspection: Inspect the whole installation process
and key components.
- Service engineer inspection: Inspect the debugging and running
condition of whole production line.
Training System:
Provide professional staff training for customers
- Service engineer offers spot training and production line operation
manual.
- After-sales personnel visit customers on a regular basis.
- Design engineer provides professional service for customers for
free.
